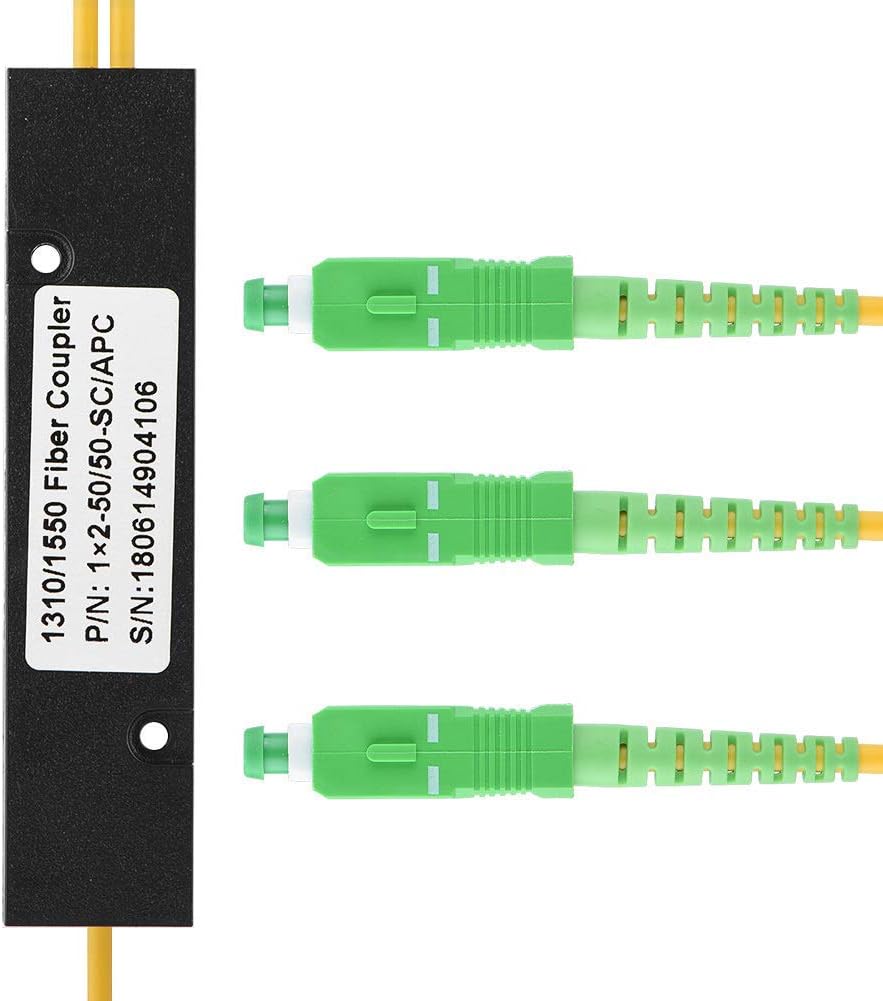

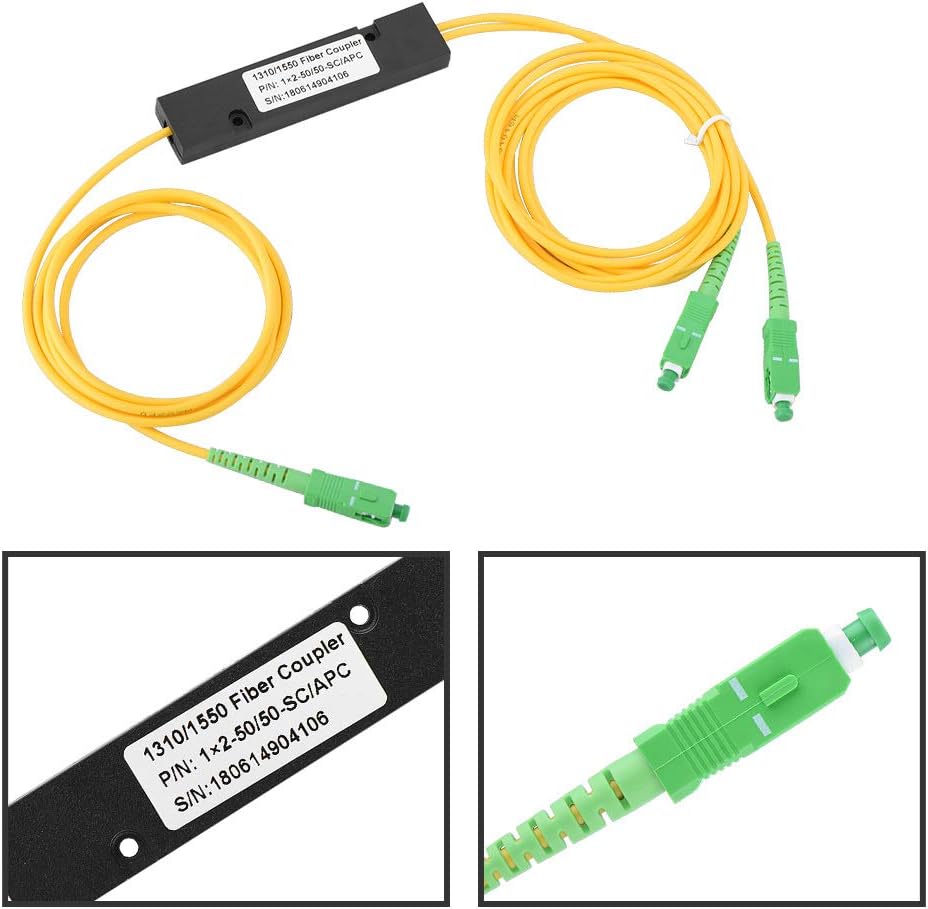

Cable Type PLC Splitter 1x2 1x8 1x16 SC/UPC SC/APC Insert Type Plug-in LGX Splitter Module Fiber Optical PLC Splitter Box 1:2

Share to:

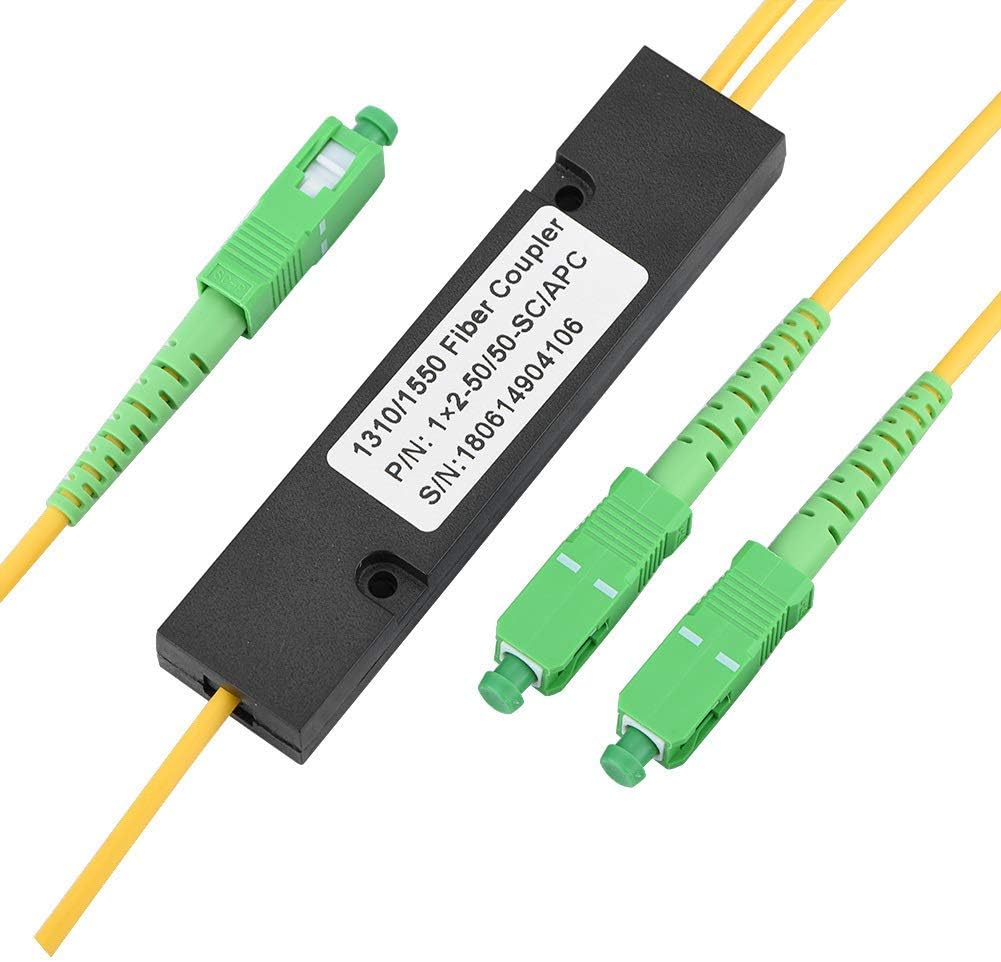

Cable Type PLC Splitter 1x2 1x8 1x16 SC/UPC SC/APC Insert Type Plug-in LGX Splitter Module Fiber Optical PLC Splitter Box 1:2

Low insertion loss and wavelength insensitive design ensure stable performance across different light wavelengths, meeting diverse transmission needs in passive optical networks.

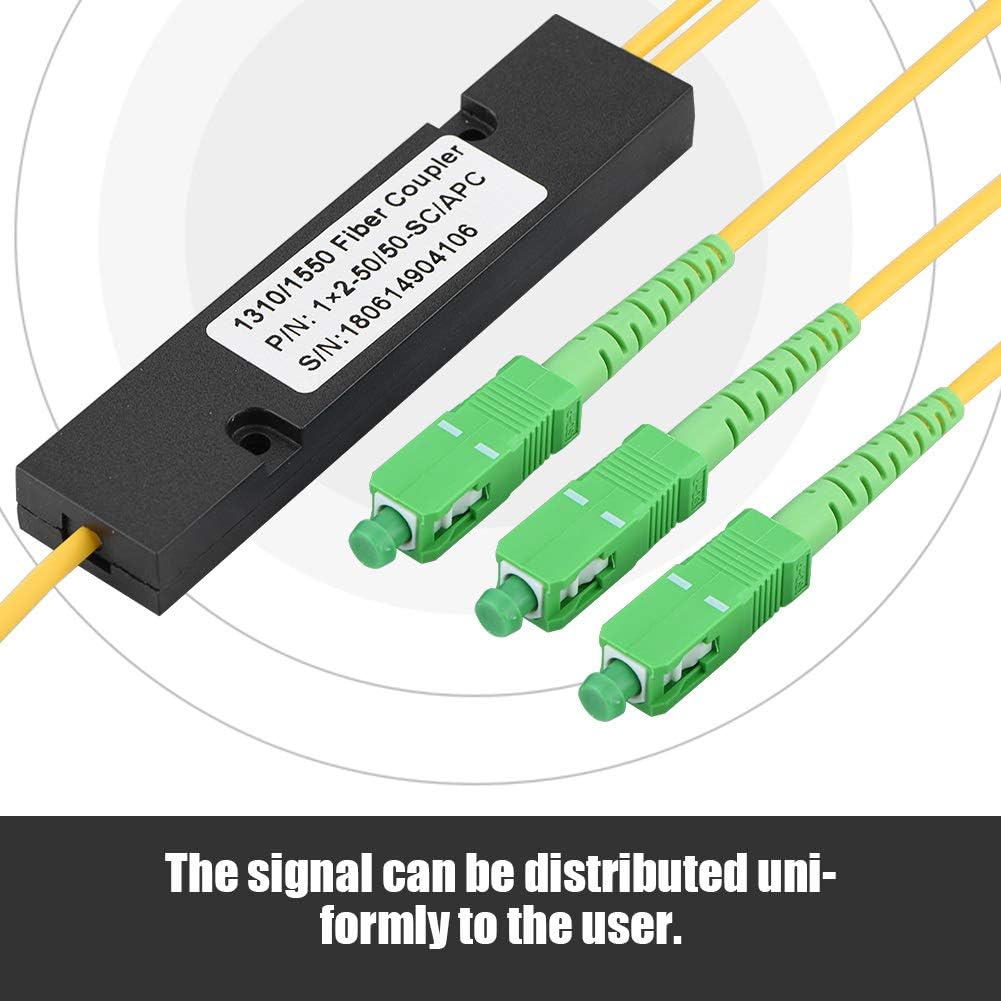

Uniform signal distribution enables equal power splitting to each user port, ideal for FTTH and PON applications with reliable network performance.
Compact and miniaturized structure allows direct installation in existing junction boxes without requiring additional space, simplifying deployment.
Supports multi-branch channels up to 32+ channels per single device, enabling scalable network architecture for expanding fiber optic systems.

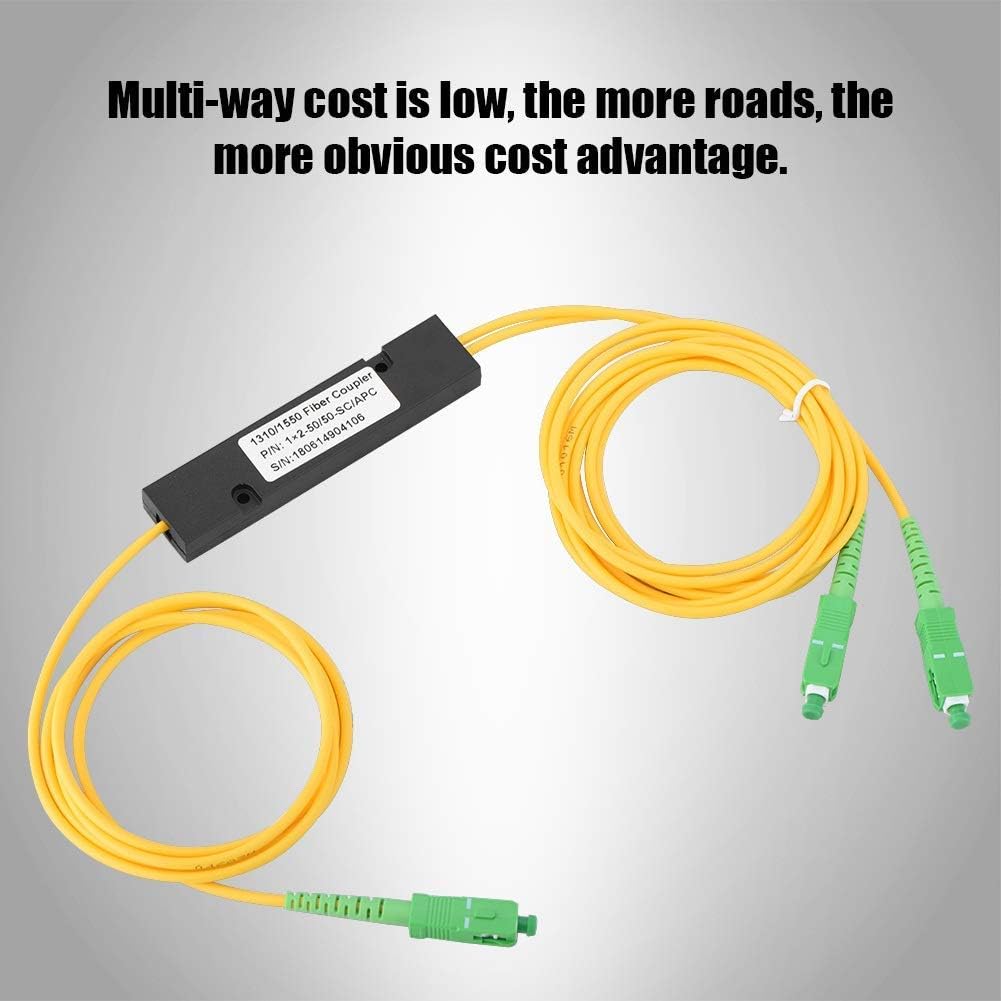

Cost-effective multi-way splitting solution with obvious cost advantages as channel count increases, compliant with ISO-9001 and -1221-CORE standards for high reliability.

Availability:

Quantity:



Inquire Add to Basket

Product Description

Products Description

Port Configuration		1×2	1×4	1×8	1×16	1×32	1×64
Operating Wavelength (nm)		1260~1650

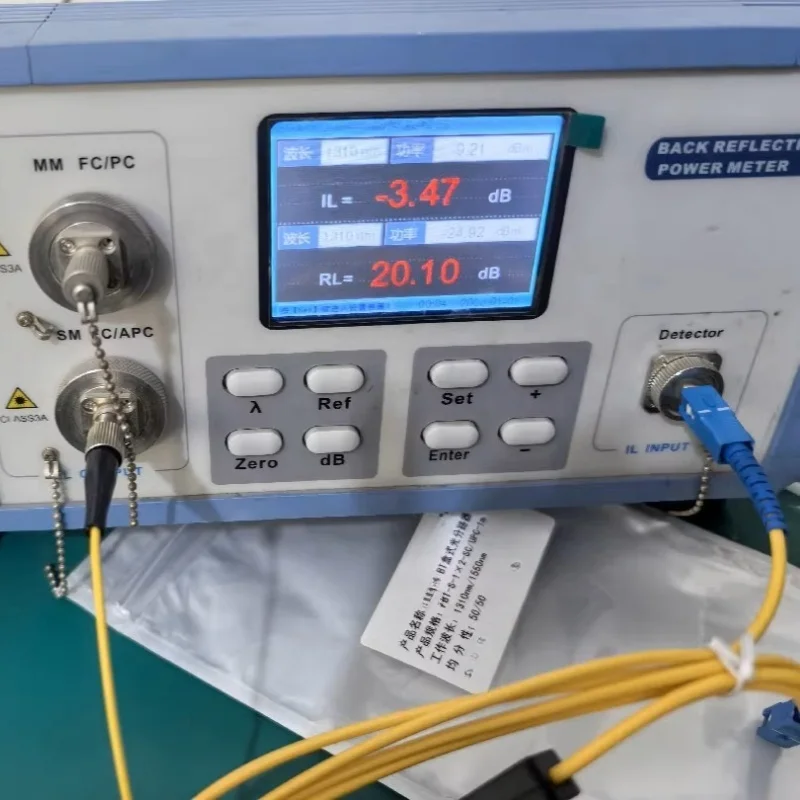

Insertion Loss (dB)	Typ.	4.0	7.0	10.3	13.5	16.5	20.0
	Max.	4.5	7.7	11.0	14.2	17.5	21.5
Loss Uniformity (dB)	Typ.	0.4	0.5	0.5	1.0	1.0	1.5
	Max.	0.6	0.6	0.8	1.2	1.5	2.5
Return Loss (dB)		50 (UPC)	50 (UPC)	50 (UPC)	50 (UPC)	50 (UPC)	50 (UPC)
		55 (APC)	55 (APC)	55 (APC)	55 (APC)	55 (APC)	55 (APC)
PDL (dB)	Typ.	0.1	0.1	0.1	0.1	0.2	0.2
	Max.	0.2	0.2	0.3	0.3	0.3	0.4
Directivity (dB)		55	55	55	55	55	55

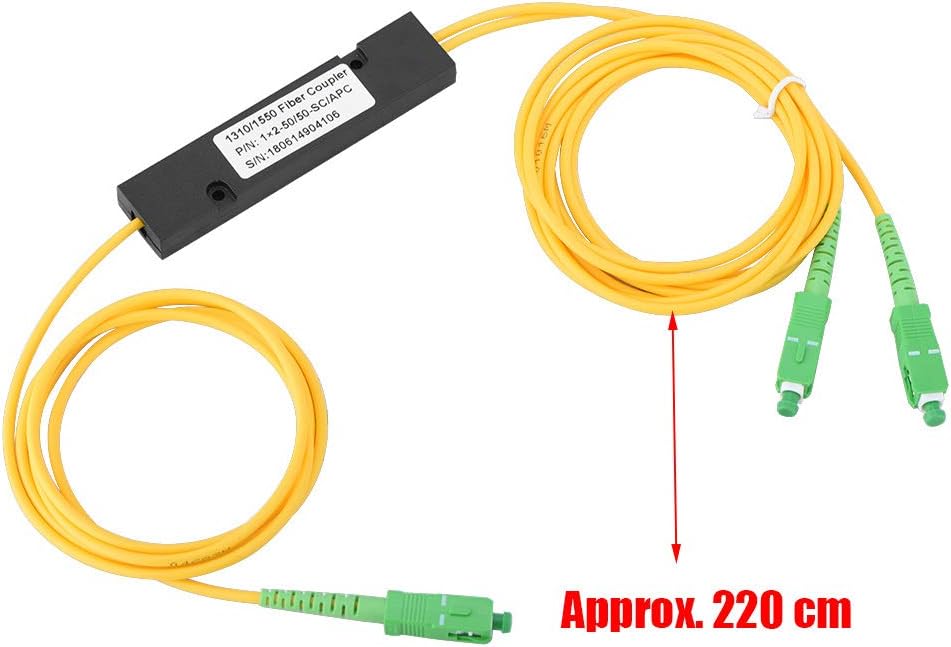

Fiber Length (m)		1.0 or customized
Fiber Type		Corning SMF-28e or customized
Wavelength Dependent Loss (dB)	Typ.	0.2	0.2	0.2	0.3	0.3	0.3
	Max.	0.3	0.3	0.3	0.5	0.5	0.5
Temperature Stability (-40~+85°C) (dB)	Typ.	0.3	0.3	0.3	0.4	0.4	0.4
	Max.	0.5	0.5	0.5	0.5	0.5	0.5
Operating Temperature (°C)		-40~+85°C
Storage Temperature (°C)		-40~+85°C

Insertion Module PLC Splitter
Fiber Optic PLC Splitter is an essential passive component in Fiber to the Home network.
The full name of PLC Splitter is Planar Lightwave Circuit Splitter. It adopts silica optical waveguide technology and is used for
optical power allocation from central office to customer premises in FTTx and FTTH networks.
PLC Splitter offers a cost effective and space saving networking solution in optical transmission system.
Insertion Module PLC Splitters is packaged in a standard size module, installed in Optical Splitter Box or Fiber Distribution Hub.

Uniform power splitting
Compact package dimension
* Low polarization dependent loss
* Good channel-to-channel uniformity
* Low Insertion Loss and high Return Loss
* Environmentally and mechanically stable
* Wide operating wavelength range from 1260nm to 1650nm

Sc/apc 1*2 Optical Splitter singlemode Tapered Box Splitter Fused Fiber Splitter 2 fiber Optic Pigtail Splitter fiber Optical Splitter
