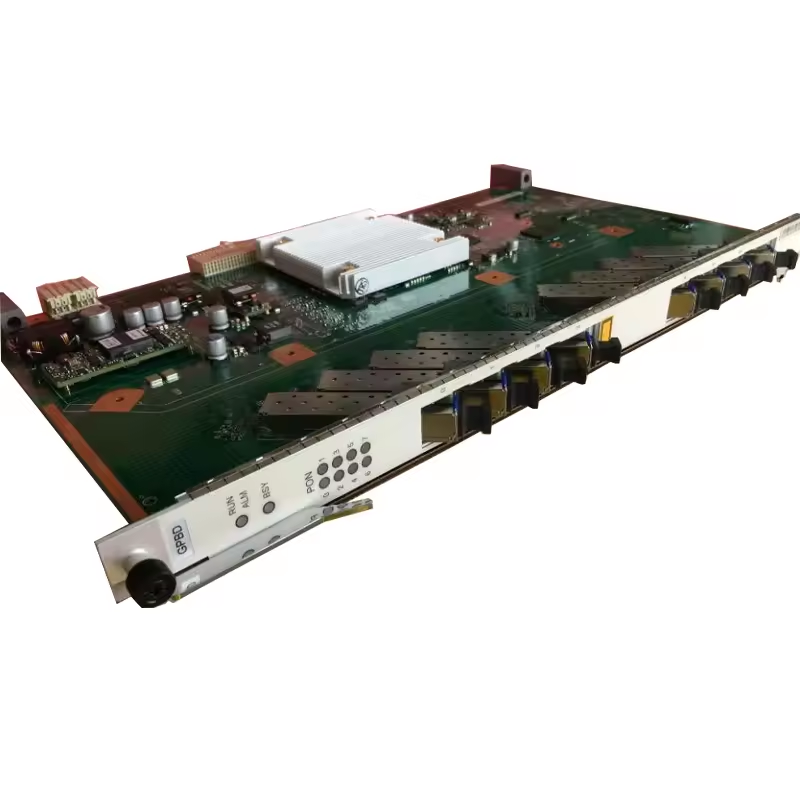

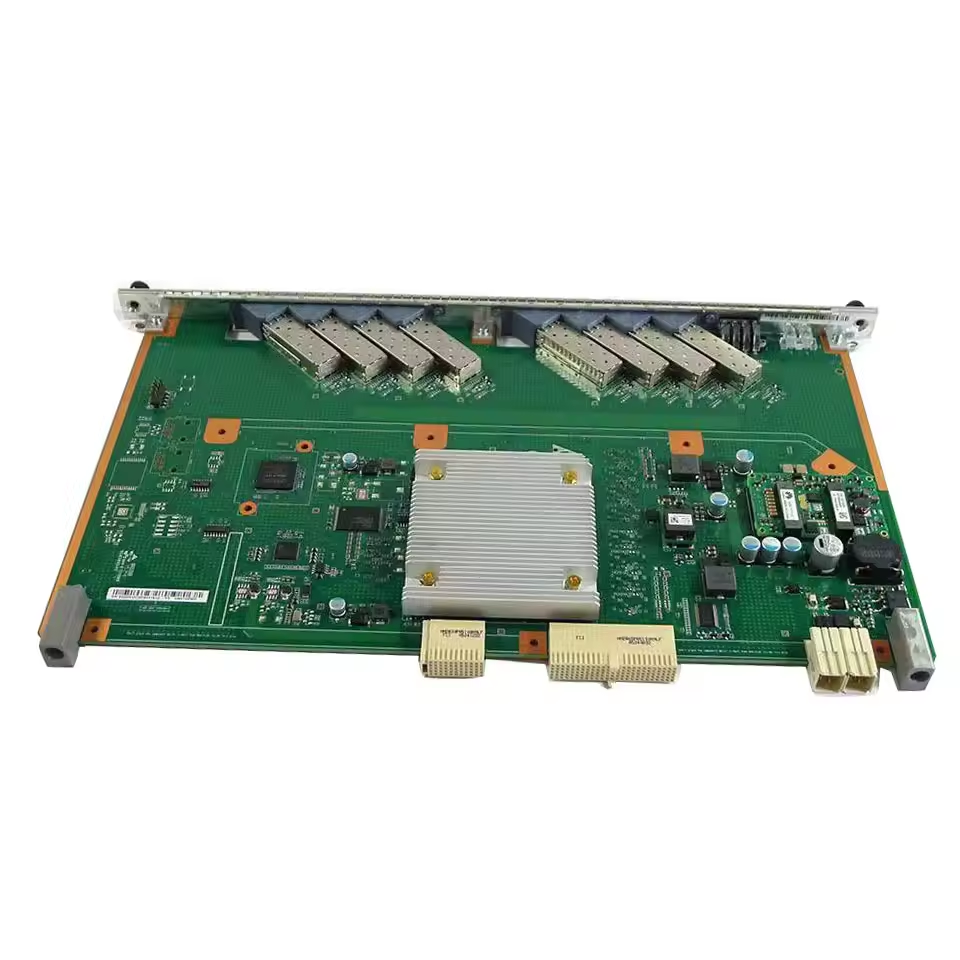

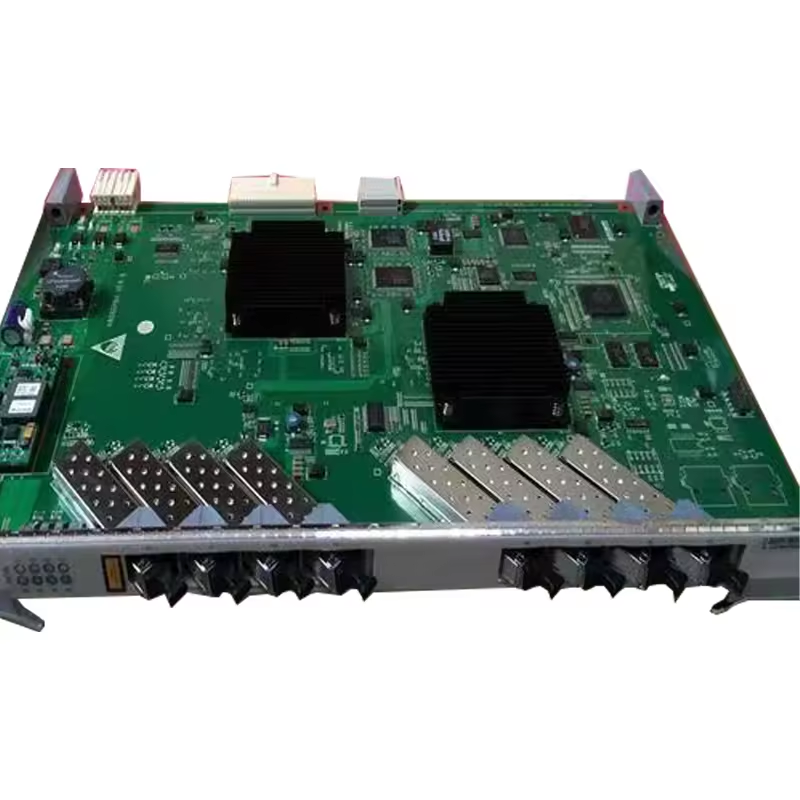

Huawei GPBD 8-port GPON OLT Interface Board Is Suitable for 5680T Series Equipment

Huawei GPBD 8-port GPON OLT Interface Board Is Suitable for 5680T Series Equipment

Huawei GPBD Service Board is the access board for PON service in Huawei OLT equipment MA5680T. Huawei GPBD is used as OLT board in PON system for optical access equipment, and is used in conjunction with terminal ONU equipment. Huawei GPBD can provide 8 GPON access services to meet the networking requirements of FTTH fiber to the home, FTTB fiber to the building, micro base station transmission, IP dedicated line interconnection, and bandwidth wholesale. (Huawei GPBD is a GPON service board with 8 ports used in SmartAX MA5680T/5683T equipment, so the model is GPBD; Huawei GPBD provides GPON access function, with 8 PON ports, and each PON port can use a splitter for splitting. Up to one PON port can split 64 optical signals, and 8 PON ports can be divided into 512 channels in total.

Description

Huawei 8-GPON Port Interface Card with C+ SFP module

Apply to Huawei MA5683T, MA5680T, MA5608T OLT system

Available at 4 versions: H802GPBD, H805GPBD, H806GPBD, H807GPBD

Support split ratio 1:128

Transmit Speed: 2.49Gbit/s, Receive Speed: 1.24Gbit/s

Interface Type: SC/PC

Max Transmit Distance: 20KM

Transmit Wavelength: 1490nm, Receive Wavelength: 1310nm

Standards Compliance: ITU-T G.984.1, ITU-T G.984.2, ITU-T G.984.3, ITU-T G.984.4

C+ SFP Module Optical Power: 3 dBm~7 dBm, Receiver Sensitivity: -32 dBm

Huawei GPBD Service Board Product
