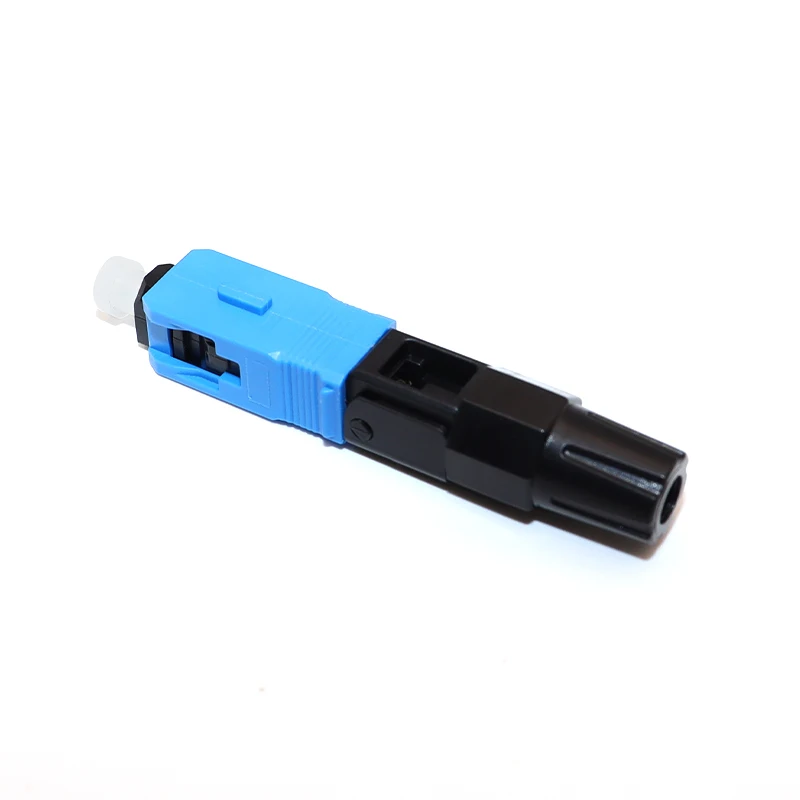

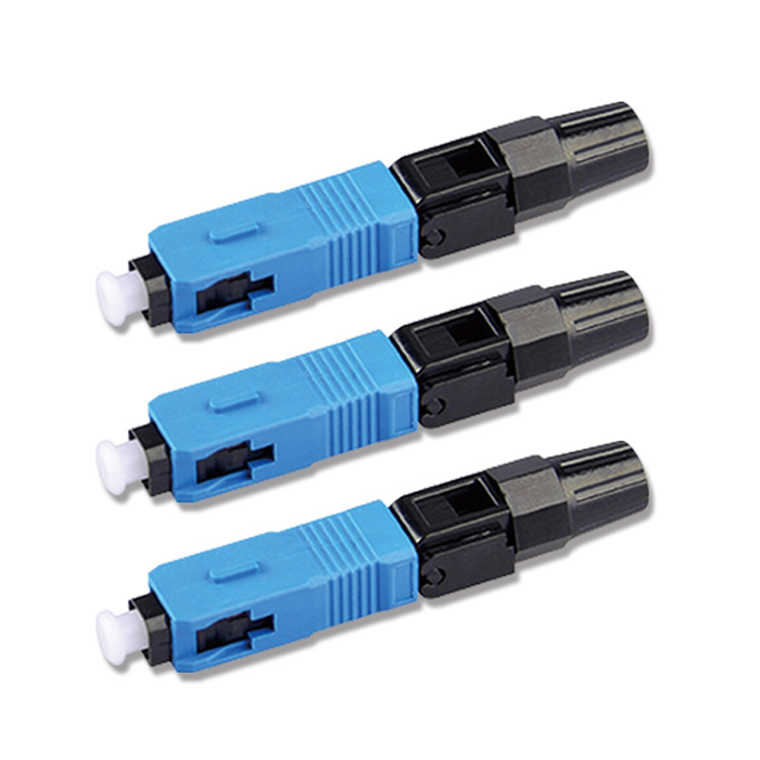

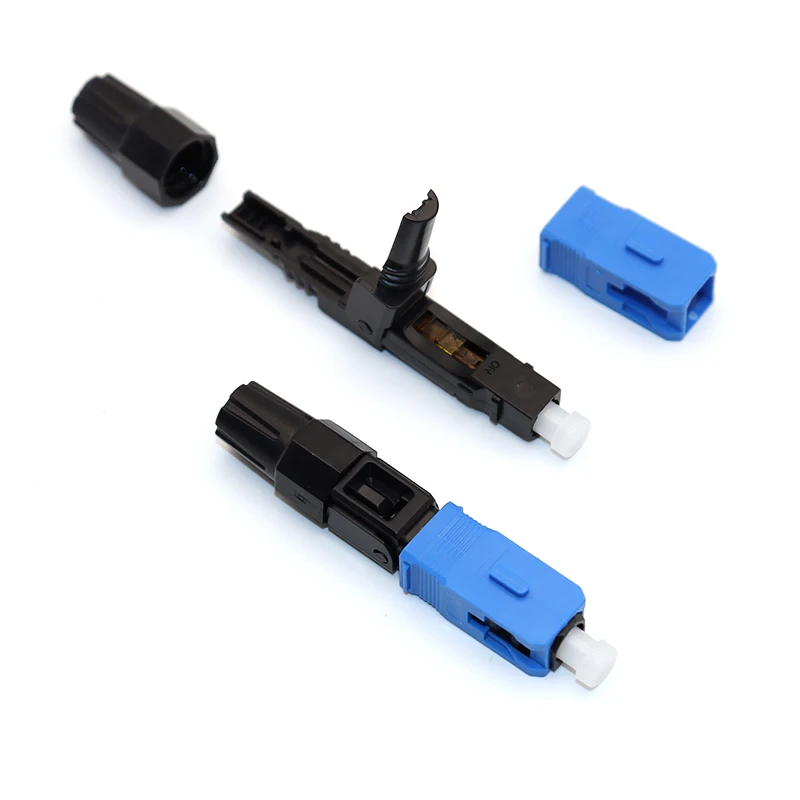

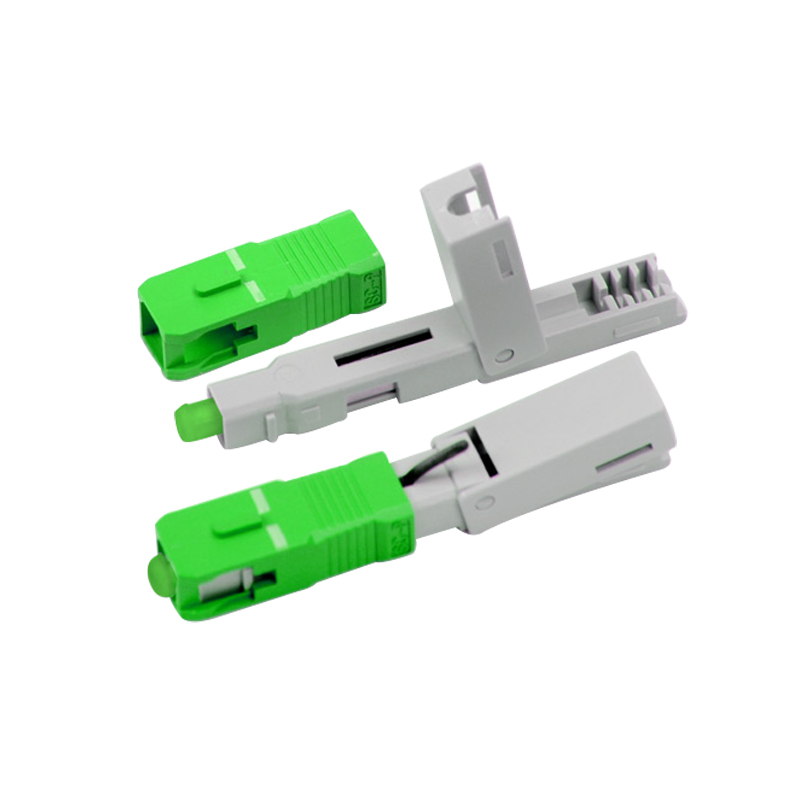

Fast Connector SC-UPC Fiber Optic Quick Cold UPC Embedded Fiber Optic Connector

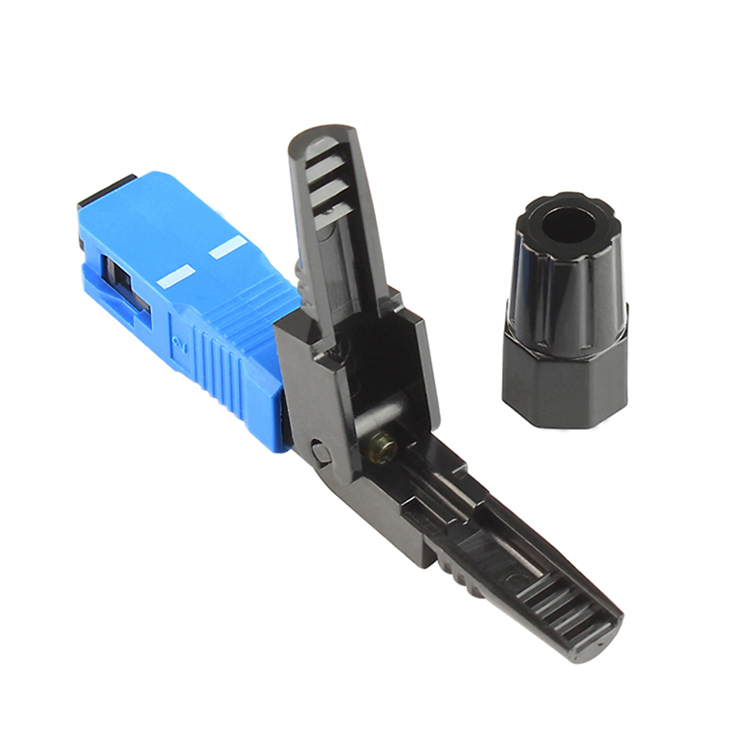

The CREDK Fast Connector is designed to simple the connection without fusion splicing machine. This connector is quick assembly which requires only normal fiber preparation tools: cable stripping tool and fiber cleaver. The connector adopts Fiber Pre-Embedded Tech with superior ceramic ferrule and aluminum alloy V-groove.. Also, transparent design of the side cover whichallows visual inspection. It could be applied to drop cable and indoor cable.

Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Paramenters

Parameter	Valve
Insertion Loss	Standard	Premium
	typical≤0.3dB max≤0.5dB	typical≤0.25dB max≤0.45dB
Return Loss	≥50dB（UPC）≥55dB（APC）
Working wavelength	SM ：1310nm/1550nm
Repeatable assembly	10 times
Mechanical Durability	1000 times
Applicable Temperature	-40℃～+80℃
Cable tension	≥30N
