HG8246H5
Huawei

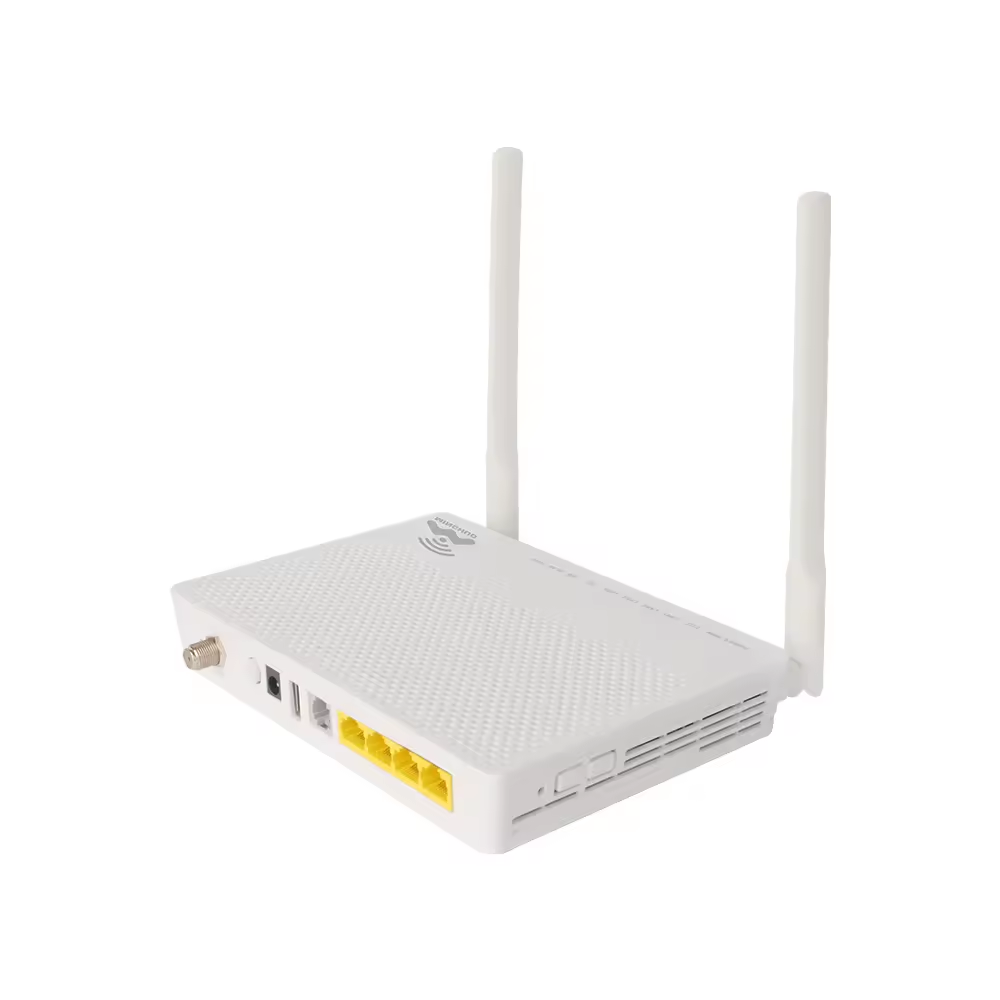

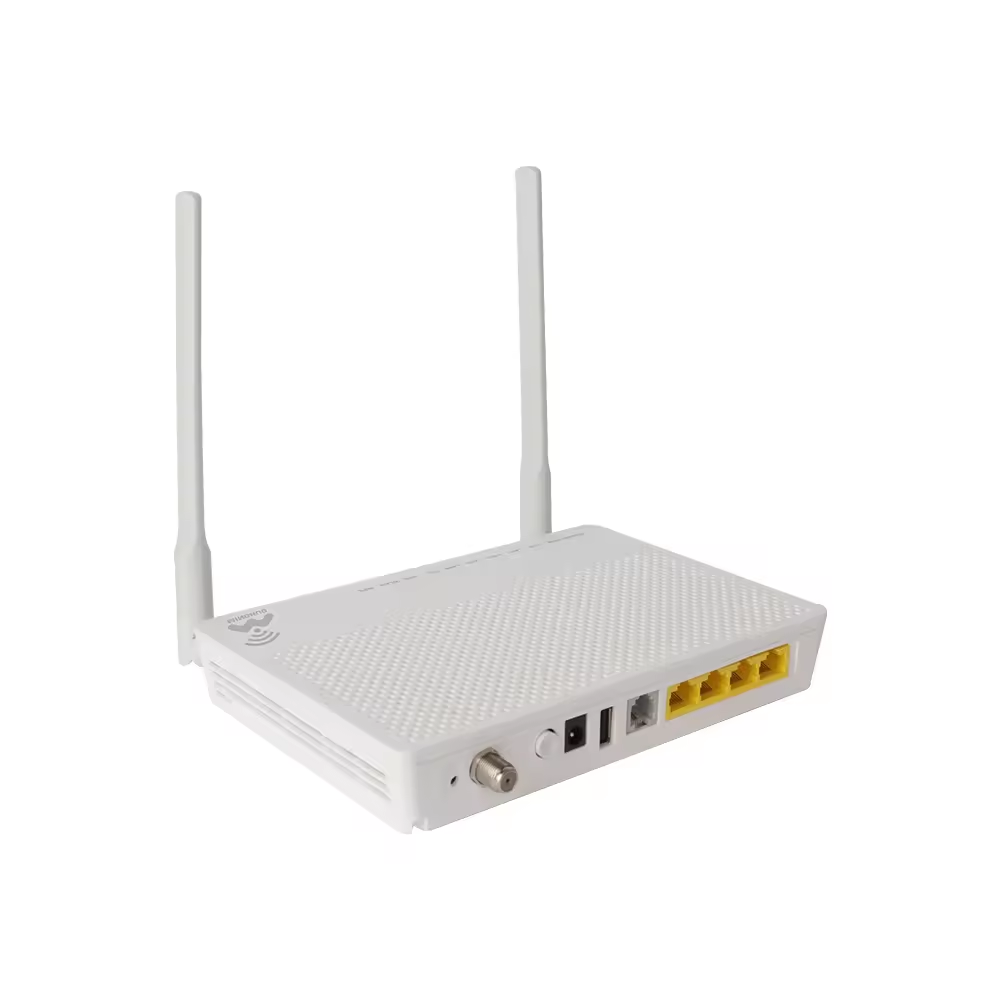

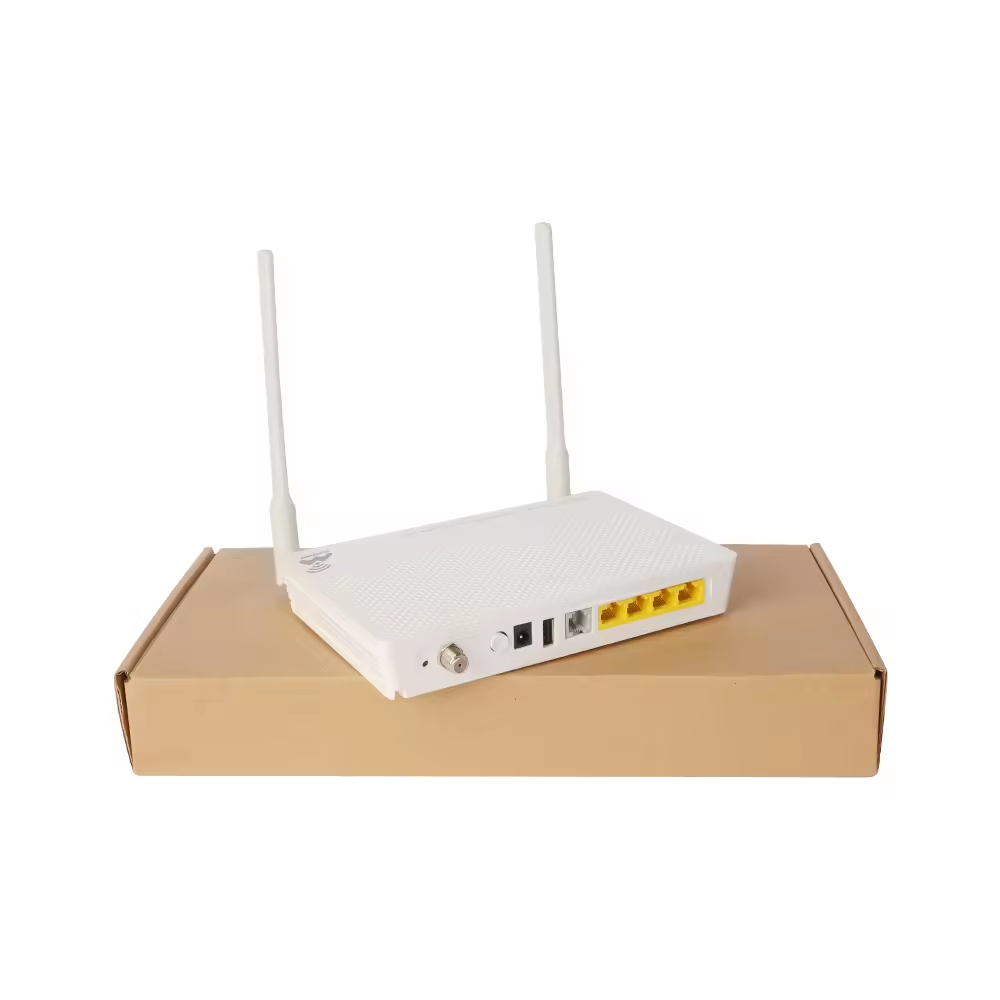

The Huawei HG8247H5 is a GPON optical network terminal (ONT) designed primarily for fiber-to-the-home (FTTH) deployments. It integrates multiple functions to meet the high-speed Internet access, voice communications, and multimedia application needs of homes and small offices.
Device Type: Smart GPON Terminal
Core Functions: Four-in-one
GPON fiber access
Wireless router
VoIP voice phone
Home network switching and storage center
Metaphorically: It serves as the "main entrance" and "transportation hub" for your home network, distributing and managing all network traffic.

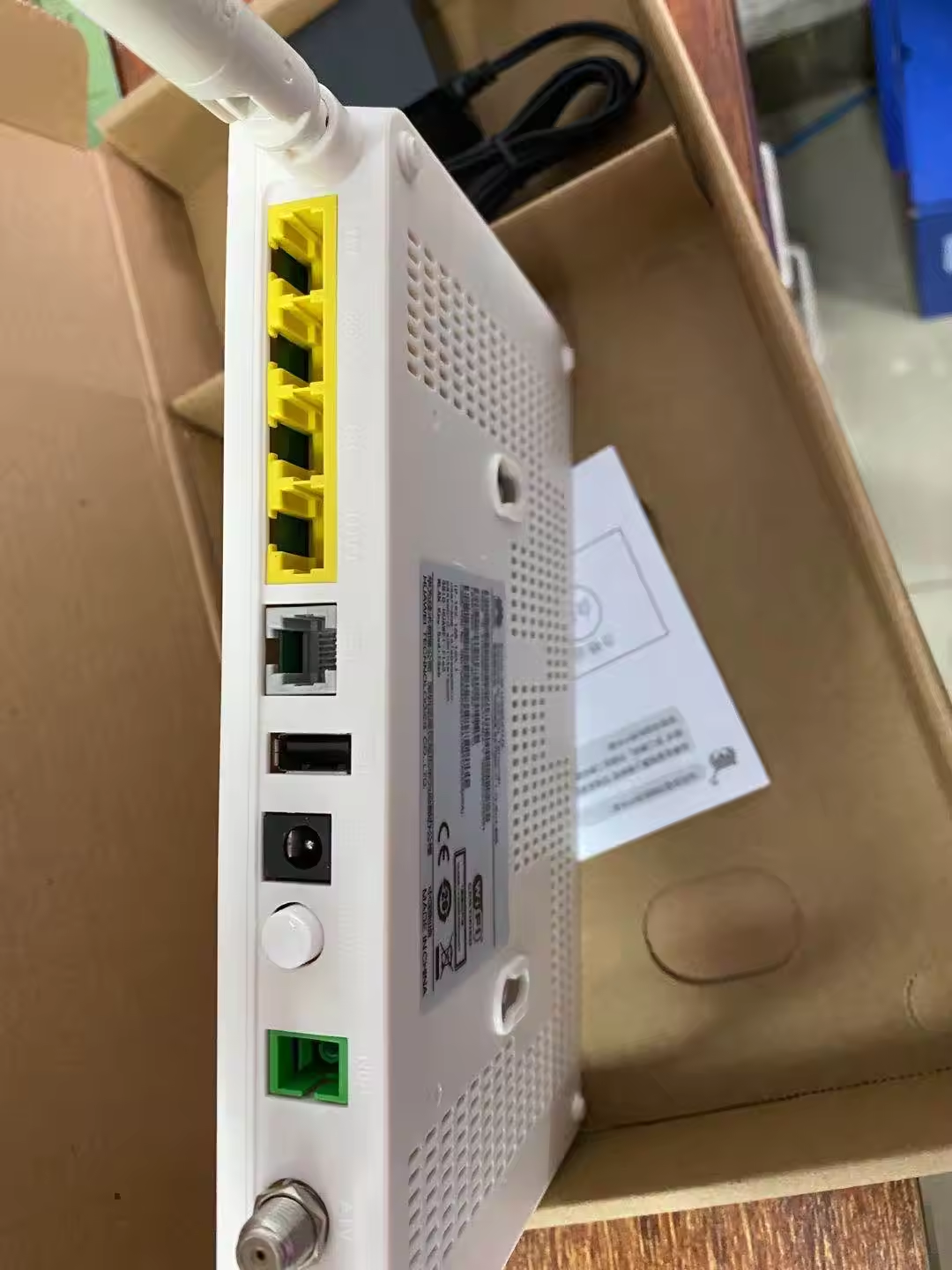

Hardware specifications
| Component | Specifications | Functional Explanation |
| Uplink Interface | 1 x GPON Optical Port (SC/APC) | Connects to the incoming fiber optic cable to receive carrier signals. |
| Downlink Interface | 4 x 10/100/1000M Auto-sensing Ethernet Ports | Can simultaneously connect wired devices such as computers, NAS, and IPTV set-top boxes. LAN2 port is typically pre-configured for IPTV. |
| Wireless Function | Dual-band Wi-Fi 5 (802.11ac) | - 2.4GHz band: Up to 300Mbps, good coverage, strong wall penetration. - 5GHz band: Up to 867Mbps, high speed, low interference. |
| Voice Interface | 2 x POTS Telephone Interfaces (RJ11) | Supports connecting two landlines for clear fiber-optic voice calls. |
| Expansion Interface | 1 x USB 2.0 Interface | Supports connecting USB flash drives or external hard drives for lightweight home file sharing or network printing. |

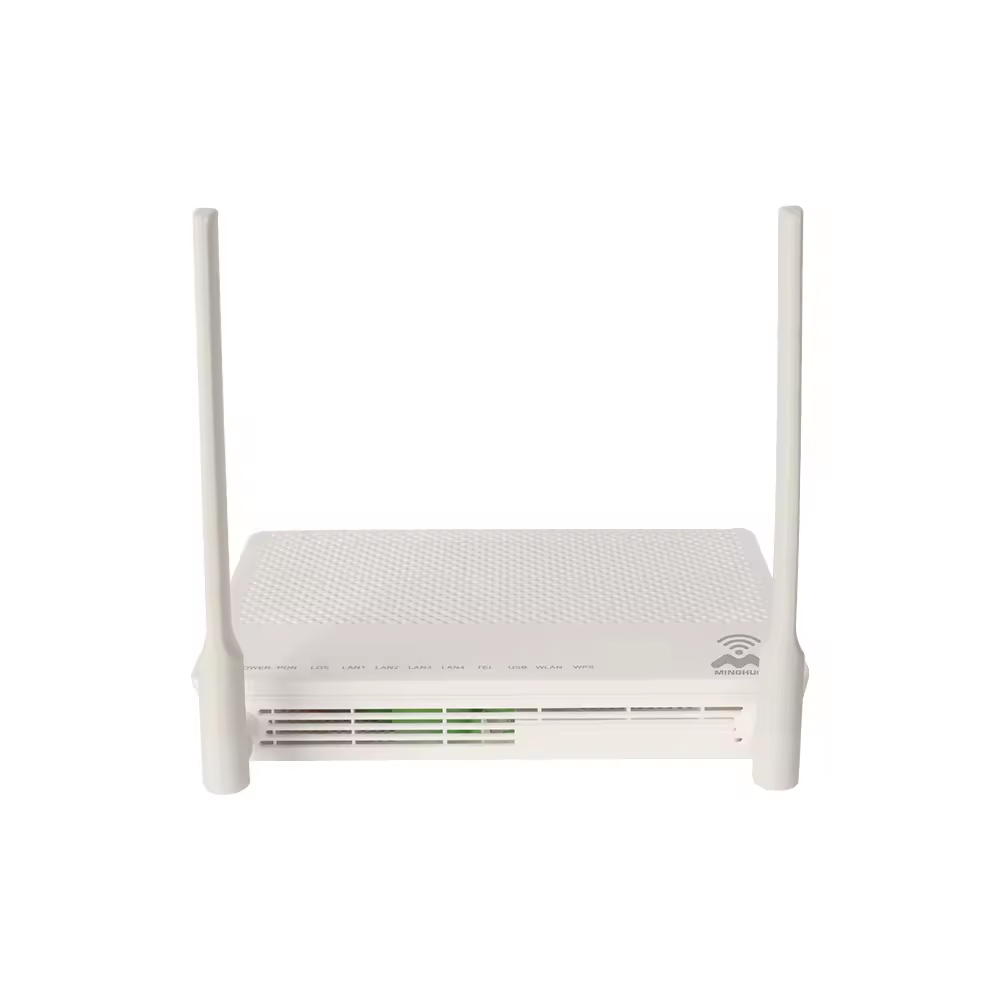

| Indicators | (POWER, PON, LOS, LAN1-4, TEL1-2, 2.4G, 5G, and WPS) | comprehensively display the operating status of each module, facilitating troubleshooting |
| Power supply | 12V DC, typically 1.5A or 2A. | Due to its powerful features, its power consumption is higher than that of a pure optical modem. |
In-depth analysis of core functions and features
Full-Featured Router Mode (Default Mode)
Features: Integrated PPPoE dial-up, NAT forwarding, DHCP server, firewall, and more.
Advantages: Ready to use right out of the box, allowing users to connect all their devices to the internet without purchasing an additional router, greatly simplifying their network structure.
Pure Bridge Mode (Advanced Mode)
Function: The routing function can be manually disabled, allowing the router to perform only signal conversion, like the HG8012H.
Usable Scenario: If you have a more powerful third-party router (such as ASUS or Netgear), using Bridge Mode allows the dedicated router to handle all network management, typically resulting in better performance, lower latency, and more features (such as game acceleration and mesh networking).
Next-Generation Wireless Technology
Wi-Fi 5 (802.11ac): Provides faster speeds and greater efficiency than older optical modems (which only support 802.11n).
Concurrent Dual-Band: Simultaneously transmits both 2.4GHz and 5GHz signals, allowing users to manually select the optimal network based on device distance and interference.
Comprehensive Business Support
High-Speed Internet Access: The Gigabit Ethernet port supports broadband plans up to 1000Mbps.
IPTV: Dedicated port binding ensures smooth and stable live streaming of online TV without consuming internet bandwidth.
VoIP: Provides a user experience similar to traditional landline calls, but with clearer audio quality.
Convenient Family Sharing
File Sharing: Plug in a USB storage device and computers and mobile phones on the LAN can access the files stored therein, creating a simple home NAS.
Network Printing: Connect a regular USB printer to this port to convert it into a network printer for shared use by the entire family.
Carrier Remote Management (TR-069)
Carriers can remotely configure devices, perform software upgrades, monitor status, and troubleshoot problems, improving service efficiency.
