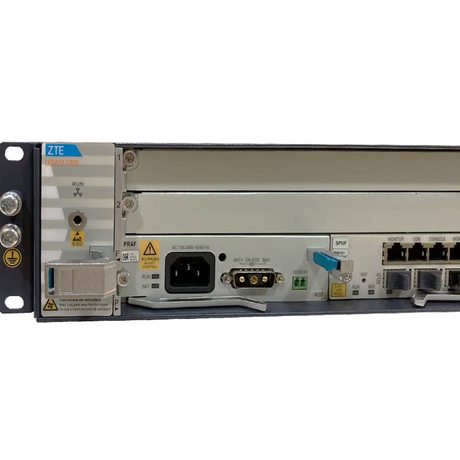

Specifications and parameters at a glance
Parameter Category | Detailed Specifications |
Work Environment | -40°C to +65°C (minimum startup temperature -25°C), humidity 5% to 95% |
Business slots | 2 units (19-inch standard rack) |
Maximum port capacity of the entire unit | 32 PON ports (2 slots × 16 ports/board) |
Single-board port density | Each service board supports 16 PON ports (GPON/XG-PON/XGS-PON/Combo, etc.). |
Uplink interface | Supports GE/10GE; optional 2-port or 4-port 10GE/GE uplink interface cards available. |
Power Supply Configuration | Supports dual DC (-48V/-60V) or dual AC (110V/220V) redundancy. |
Capacity Estimation: How many users can it support?
The number of users supported by the C620 depends on the service board type and the split ratio configuration. The following is an estimate based on a GPON scenario:
Maximum PON ports per unit: 32
Typical split ratio: 1:64
Estimated total users: 32 ports × 64 = 2,048 users
If a 1:128 split ratio is used, the theoretical upper limit reaches 4,096 users; with a 1:32 split ratio, the capacity is approximately 1,024 users. Additionally, like the Huawei MA5608T, it supports Type B/C network protection, effectively enhancing network reliability.
