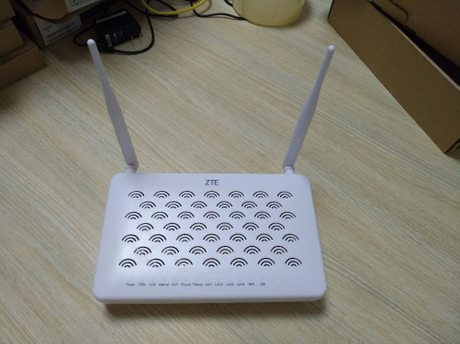

Introduction to ZTE F460 V6

The ZTE F460 V6 is an FTTH (Fiber-to-the-Home) EPON terminal device designed for home and office environments.

Core Positioning and Technology

Product Type:

The EPON (Ethernet Passive Optical Network) Optical Network Terminal (ONT) is the terminal device for Fiber-to-the-Home (FTTH) connections.

Primary Uses:

Converts fiber-optic signals into various services such as high-speed internet access, IPTV, VoIP telephony, and Wi-Fi, supporting "triple-play" applications.

Transmission performance:

The fiber-optic uplink rate is 1.244 Gbps, the downlink rate is 2.488 Gbps, and the maximum transmission distance is up to 20 kilometers.

Key Interfaces and Configurations

Network port:

It features one Gigabit (GE) port and three Fast Ethernet (FE) ports. However, only the LAN1 port is a true Gigabit port; the others are Fast Ethernet ports.

Wireless network:

Supports Wi-Fi 4 (IEEE 802.11b/g/n), operates in the 2.4GHz frequency band, and delivers speeds of up to 300Mbps.

Other interfaces:

Equipped with one POTS telephone port (VoIP) and one USB 2.0 port, which can be used for extended functions such as local backup.

Functional and Management Features

Business Support

Supports various services such as VoIP, Internet, and IPTV, and features fundamental functions including VLAN, QoS (Quality of Service) policies, and IGMP Snooping (multicast management).

Management style:

Supports local web-based management and remote management via the TR-069 protocol, facilitating device maintenance and service provisioning for operators.

Safety features:

Equipped with security features such as Dying Gasp, optical power monitoring, and DoS (Denial of Service) attack protection.
