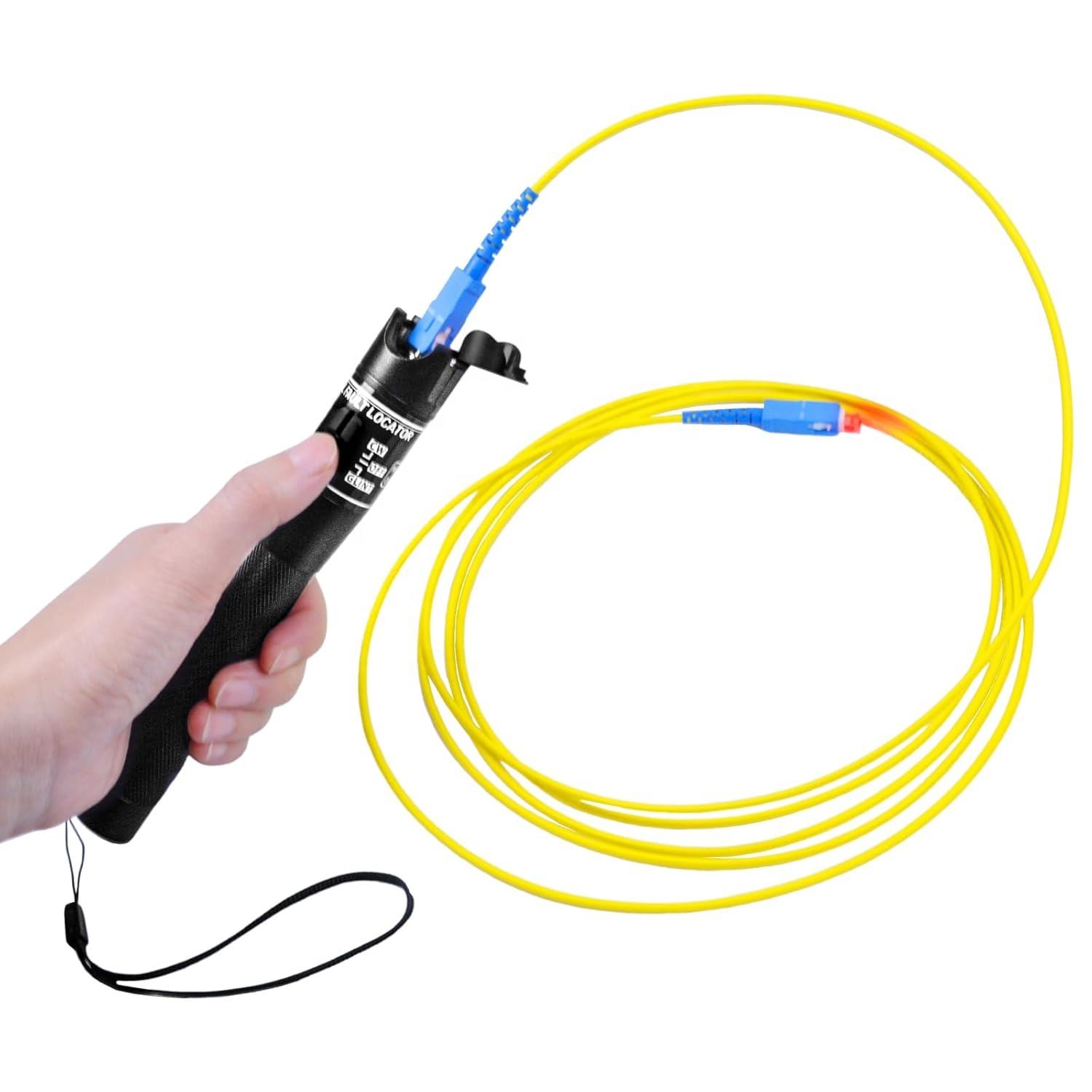

Quantum well LD is used as the light source, which is driven by a constant current source to emit stable red light with a wavelength of 650nm. After being connected to the optical interface of the optical fiber, it enters the optical fiber. Depending on whether there is red light output at the other end and the transmission status of light, the fiber connectivity, breakpoints, bending and other faults can be detected and located.
·Fiber link detection ·Fault location ·Fiber identification and management
Product Parameters
Model Number | 5/10/20/30/50 MW VFL |
Laser type | LD |
Output power | >10mW/>20mW/>30mW |
Test Range | 5-10KM/15-20KM/20-30KM |

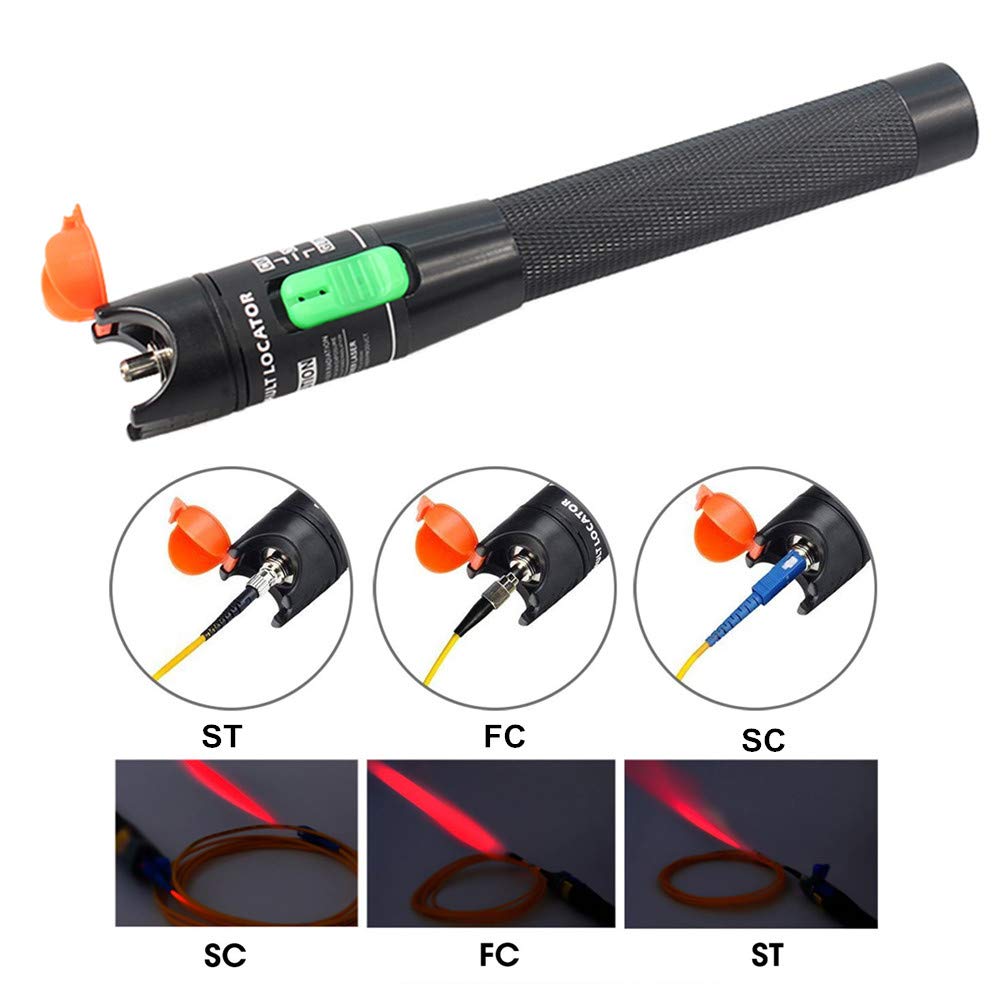

Connector | Universal 2.5mm |
Wavelength | 650nm±10nm |
Modulated Frequency | CW/2Hz |
Dimension | 20.0X16.0X4.0 cm |
Weight | 0.13KG |
Power supply | 2*AA battery |
Accessories | 2*AAA battery |
