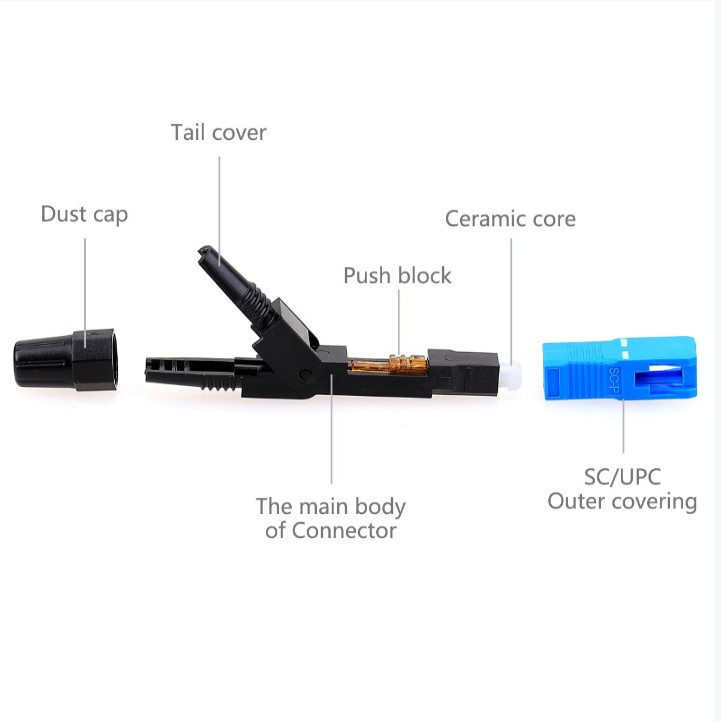

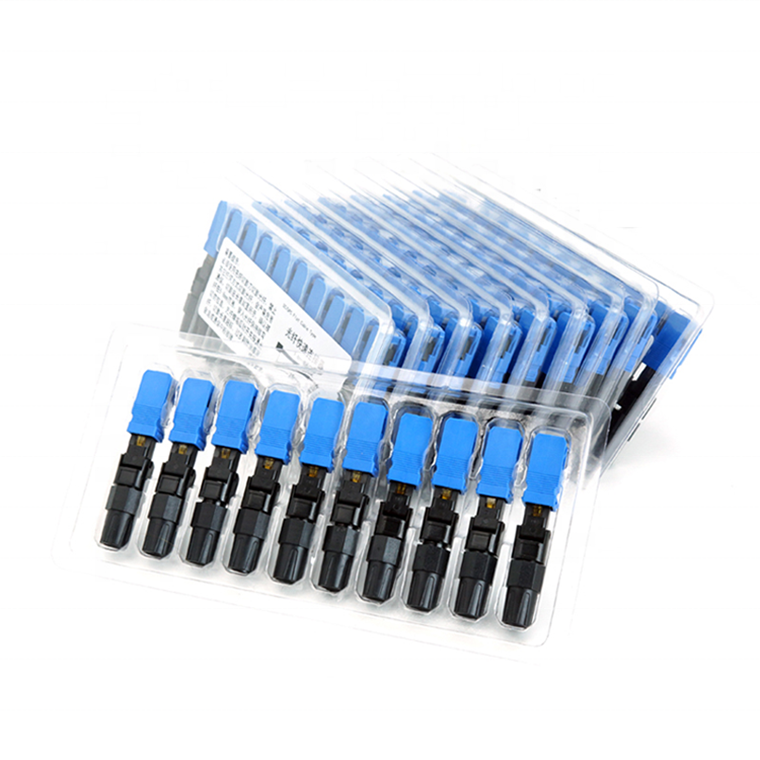

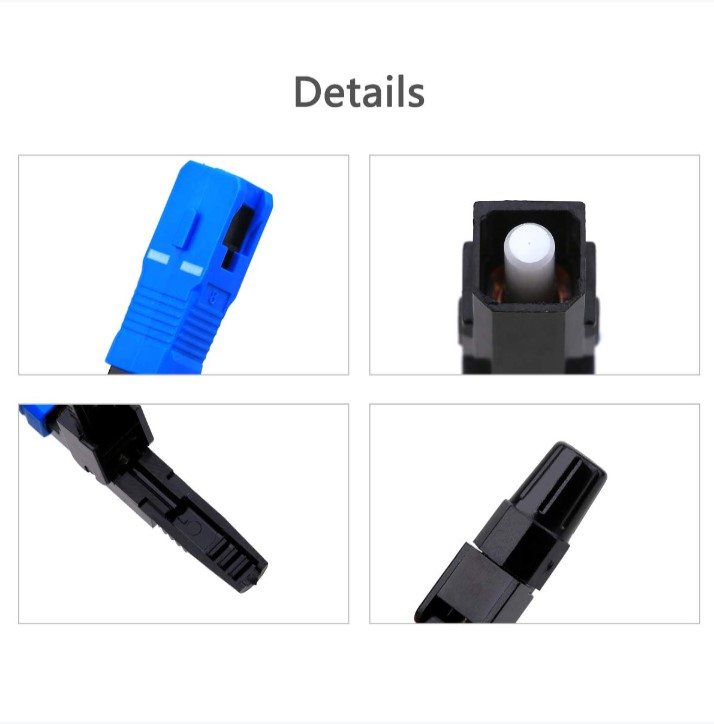

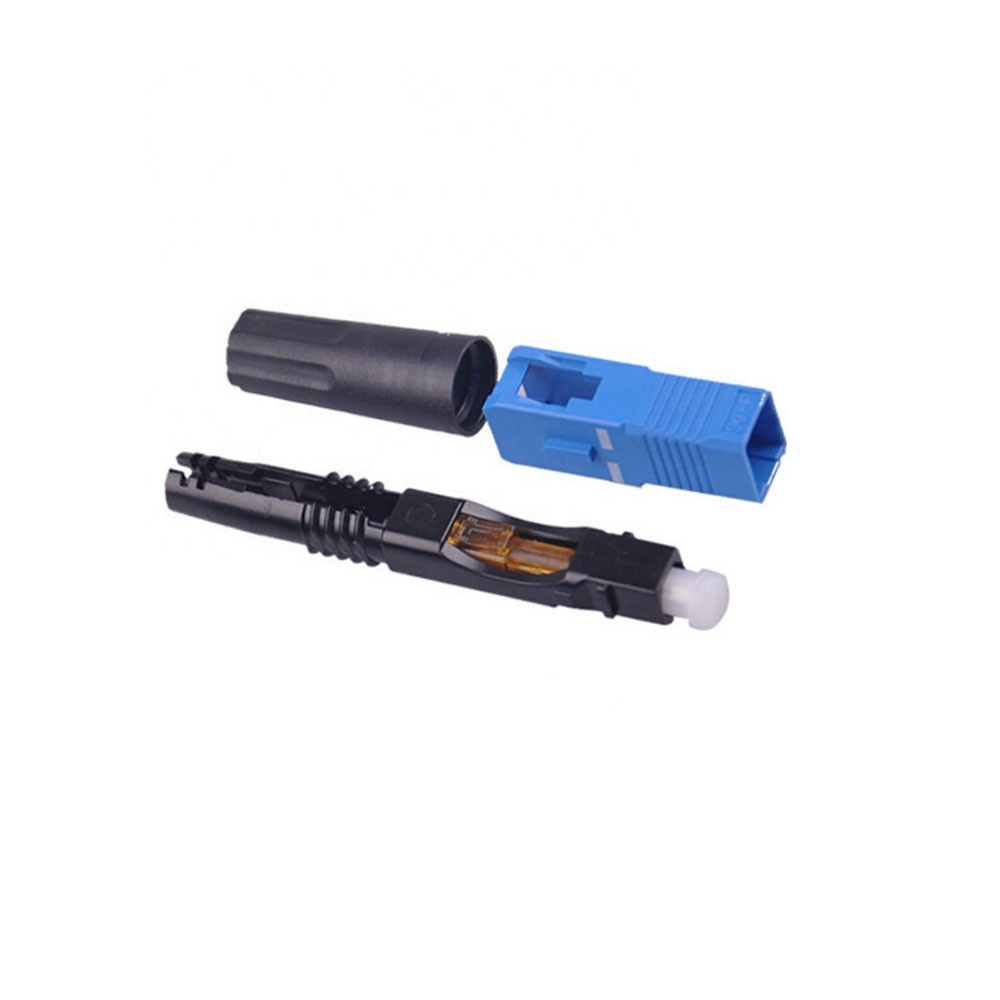

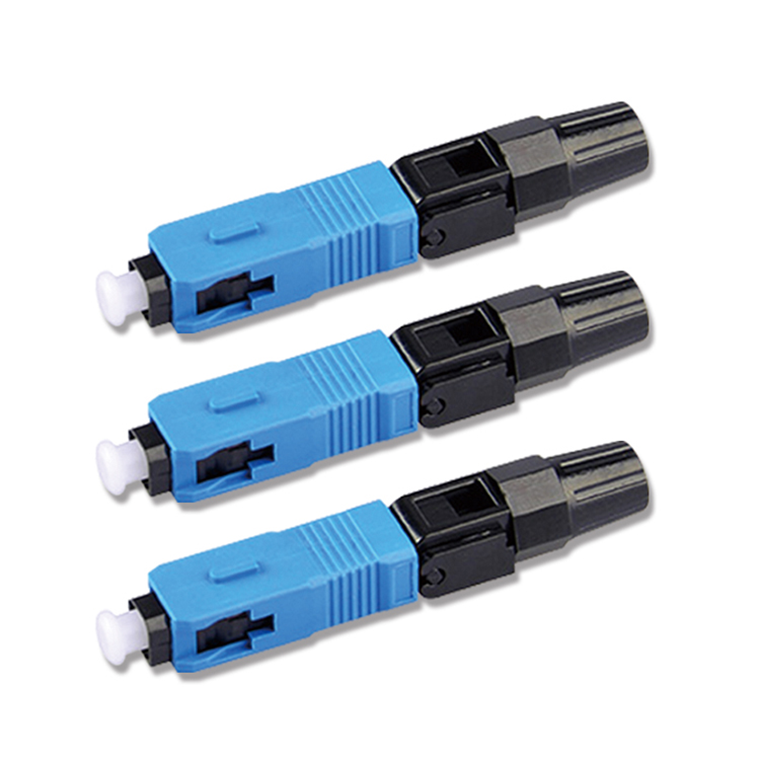

SC/UPC Quick connector
lianbai
The core functions of the SC/UPC Quick Connector
In summary, its core function is to quickly, inexpensively, and reliably establish a standardized, pluggable optical signal connection point at the end of the fiber optic network (on the user side or equipment side).
1. Fast On-Site Termination and Deployment
This is the primary function of the "Quick Connector."
No professional fusion splicer required: Installers only need simple stripping, cutting, and crimping tools to complete fiber termination at the construction site, in the user's home, or in the equipment room.
Significantly reduced installation time: Compared to traditional fusion splicing (which requires power-on, calibration, splicing, and heat-shrink protection), installing a patch cord typically takes only 2-5 minutes.
Lower skill requirements and costs: Reduces reliance on expensive equipment and highly skilled splicing technicians, making it particularly suitable for large-scale fiber-to-the-home deployments.
2. Achieving Low-Loss, High-Performance Optical Signal Connection
This is the function provided by "UPC" and its precision structure.
Stable low insertion loss: It has pre-embedded and pre-polished short fiber segments internally, ensuring precise alignment with the field fiber through a precision V-groove, with a typical insertion loss value below 0.3dB (high-quality products can reach 0.1-0.2dB).
Meets general system requirements: The return loss of the UPC end face (approximately 50-55dB) meets the requirements of most data communication, cable TV, and telecommunications access networks (such as GPON) and other non-high-reflection sensitive applications.
3. Providing a Standardized, Reliable Mechanical Interface
This is the function of the "SC" connector.
Reliable push-pull locking mechanism: Easy to plug and unplug, secure locking, and not prone to accidental disconnection.
High adapter density: The square design allows for dense arrangement on patch panels and optical modules, saving space.
Excellent repeatability: Withstands multiple insertions and removals (usually >500 times), maintaining stable performance.
4. Flexible Adaptation and Repair
This is its key function as a "patch cord end" or "connection point."
Connecting equipment to the backbone: Connects optical terminal equipment (such as optical modems, routers, and switches) to the fiber optic network.
Making custom-length patch cords: Patch cords of the required length can be made on-site according to the distance, avoiding redundant cables.
Quick repair of damaged patch cords: If the patch cord connector at the equipment end is damaged, there is no need to replace the entire long patch cord; simply cut off the damaged connector and make a new one using a quick connector.
5. Simplified Material Management and Inventory
High Versatility: A single SC/UPC quick connector is typically compatible with standard 125μm single-mode optical fibers (G.652.D), eliminating the need to prepare multiple connectors for different applications.
Reduced Inventory Pressure: Maintenance personnel only need to carry a small number of connectors and simple tools to handle various field situations, eliminating the need to prepare a large number of pre-terminated patch cords of different lengths.
6. Testing and Maintenance Access Points
Easy Testing: During network installation or troubleshooting, test patch cords can be quickly created to connect to an optical power meter or OTDR for testing.
Temporary Link Setup: Quickly set up test or temporary transmission links in laboratories, data centers, or for temporary events.
